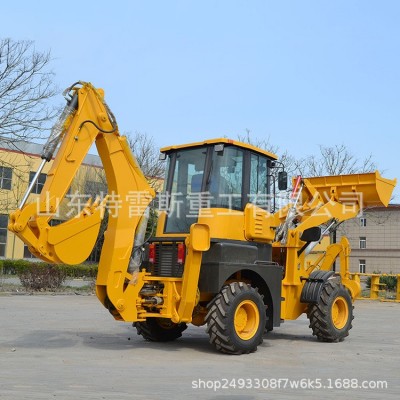

WZ30-25技术参数 The Performance Parameter of Backhoe Loader WZ30-25 | |
整机操作重量 Overall Operating Weight | 6600KG |
运输尺寸Transport Dimension | |
长×宽×高mm L*W*H | 7600×2100×3100 |
轴距Wheel base | 2250mm |
最小离地间隙 Min. Ground Clearance | 300mm |
装载斗容Bucket Capacity | 1.3m3 |
掘起力Breakout Force | 38KN |
装载举升能力 Loading Lifting Capacity | 2500KG |
铲斗卸载高度 Bucket Dumping Height | 3500mm |
铲斗卸载距离 Bucket Dumping Distance | 1022mm |
铲挖深度Digging Depth | 52mm |
反铲斗容 Backhoe Capacity（Width） | 0.3m3(520mm) |
最大挖掘深度 Max. Digging Depth | 4082mm |
挖斗回转角 Swing Angle ofbackhoe | 190o |
最大牵引力 Max. Pulling Force | 39KN |
发动机Engine | |
型号Model | YUNNEI 4102 Turbo |
型式Type | 单列、直喷、四冲程、水冷 In Line，Direct injection，Four-Stroke，WaterCooling |
额定功率Rated Power | 76KW |
额定转速Rated Speed | 2400r/min |
排量Displacement | 4.4L |
转向系统Steering System | |
转向角Steering Angle | ±36o |
最小转弯半径 Min. turning radius | 5018mm |
系统压力 Pressure of the system | 12Mpa |
驱动桥Axle | |
型号Model | Wheel Hub Reducer |
轮边减速型式Final Reducer | 一级轮边减速Single Stage Final Reducer |
传动系统Transmission System | |
变矩器Torque Converter | |
型号Model | YJ280 |
型式Type | 单级、单相三元件Single-stage Three Elements |
冷却方式Cooling Method | 油冷压力循环Oil-cooling Pressure Circulation |
变速箱Gearbox | |
型式Type | 动力换档Power Transmission |
档位数Gears | 前进2档，后退2档Two Gears Ahead, Two Gears Astern |
最高车速Max.Speed | 28Km/h |
可选档位数Optional Gears | 前进4档，后退4档Four Gears Ahead,Four Gears Astern |
最高车速Max.Speed | 40Km/h |
轮胎Tyre | |
规格Model | 16/70-20 |
前轮气压 Pressure of Front wheel | 0.22 Mpa |
后轮气压 Pressure of Back Wheel | 0.22 Mpa |
制动系统Brake System | |
行车制动Service Brake | 气顶油钳盘制动Air Over Oil Caliper Brake |
外置式External Type | |
自调节Self-regulation | |
自平衡Self-balance | |
驻车/紧急制动 Emergency Brake | 操纵力实施制动Operation Power Implementing brake |
手操纵力解除制动Manual Operation Power Terminating Brake | |
液压系统Hydraulic System | |
液压系统压力 Pressure of Hydraulic System | 22Mpa |
标配 | 前铲带铲斗，后挖带挖斗，豪华带内饰驾驶室，暖风，风扇，豪华可调式旋转座椅，可调式仪表盘，前铲后挖都是液压先导操作，驾驶室带推拉窗，驾驶室可前翻（便于维修），云内76KW发动机，16/70-20轮胎，280变速箱，双联泵，加重大轮边桥，A形支腿带锁止，后挖摇摆带缓冲功能。 |
注：以上参数或者配置如有变更，怒不另行通知。 The parametersor configurationare subject to change without notice. | |
